GATE - TITAN II Bluetooth V2 (REAR WIRED)

Brand new TITAN II Bluetooth® for V2 GB is GATE flagship Electronic Trigger Unit (ETU).  Built-in Bluetooth 5.2 technology gives you direct access to TITAN settings, AEG telemetry and ability to use smartwatch, STATUS and other futuredevicesof GATE Ecosystem. Innovative gear sensor not only counts gears, but also as first in the world determines the direction of a gear rotation,offering youthe most precise cycle control in AEGs. Mind-blowing optical trigger sensor allows you forsetting hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement, keeping TITAN V2 sensor advantages. TITAN II Bluetooth® is equipped with a multifunctional port ready for connecting additional accessories such as bolt-catch, magazine sensor, tracer inhop-up chamberand others.

SPECIFICATIONS

Supply Voltage Range 3.75-17 VDC

Rated Current 30 A

Current Consumption 27 mA

Low Power Mode 100 µA

Connectivity Bluetooth® 5.2 Low Energy

Dimensions (Length x Width x Thickness) 47.2 mm x 28.9 mm x 14.5 mm

Finished Product Weight 28.2 g

Operating Temperature Range min. -15° C, max. +50° C

Relative Humidity = 80%

Programmable power supply with eFuse Connect additional accessories such as hop-up chamber tracer and electric magazines

2x Multifunctional port
Connect additional accessories such as bolt catch, magazine sensor, external trigger and selector sensors?

Compatible accessories:

- Power supply cable (GEL BLASTER/Electric Magazine/Tracer)

- Cable for single solenoid HPA

- Cables for dual solenoid HPA

- Divider ready for connecting many accessories (you can connect 1x power supply cable and 2x I/O cable)

- Universal I/O cable for max. 2 DIY accessories (Bolt-catch, Magazine sensor, Flashlight)

- Bolt-catch with button and cable (ready to connect)

- Magazine sensor with cable (ready to connect)

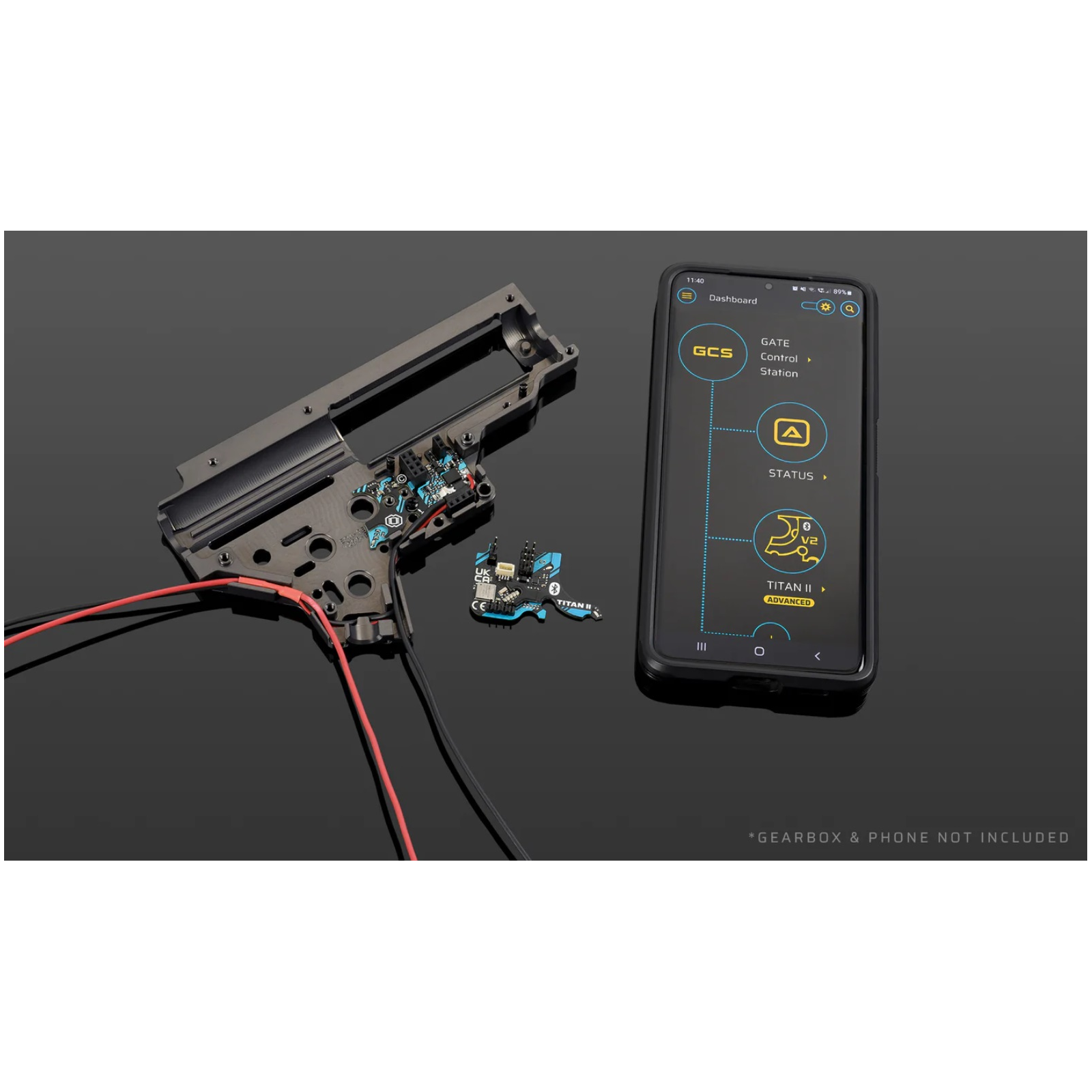

Connect your TITAN with the GCS App via Bluetooth® and get total control of your AEG:

- Control your airsoft gun from your iOS, Android, macOS or Windows device

- Set trigger sensitivity exactly as you like and adjust other TITAN settings in a simple way

- Use automatic Pre-Cocking to gain a trigger reaction just like in a real gun

- Try out ROF control, magazine simulation, and other functions

- Update and upgrade Firmware

- Check BB counters and telemetric data

- Perform diagnostics and send reports

- Virtual STATUS for smartwatches and smartphones

- Bolt Catch and magazine sensors for a realistic reload sequence

FEATURES

TRIGGER SENSITIVITY ADJUSTMENT
SELECTOR MODES
PRE-COCKING
MAGAZINE
ROF CONTROL
SMART TRIGGER
BATTERY PROTECTION & WARNINGS
ACTIVE BRAKE
CYCLE DETECTION
DIAGNOSTICS & UPDATES
SMART FUSE
